Characteristic:
The Two Heads Marble CNC Router 1325 is an exceptional machine with a leading rack drive that ensures fast speed and high efficiency. Its impressive air speed can reach over 35m/min, while the reverse wave board achieves more than 20m/min. In fact, this incredible speed is equivalent to purchasing 4-5 sets of ordinary machines.
Protection against damage and errors is critical when it comes to machine performance. With intelligent protection systems, the work surface can be safeguarded from any potential harm caused by software glitches or human error. Furthermore, the inclusion of cross-border protection can prevent mechanical collisions from occurring when processing formats surpass design limits. These safety measures offer enhanced security and longer life spans for the device, which ultimately helps to ensure that production and manufacturing processes run smoothly and efficiently.
Our product is fully compatible with relief software such as CAD/ArtCAM, ensuring that it complies with international standards.
The Two Heads Marble CNC Router 1325 is equipped with an advanced DSP control technology which enables multi-level 3D automatic processing. With its fast and smooth processing, engraving and cutting functions, it provides a highly convenient user experience as it also supports offline operation. The handle is expertly designed to ensure that the machine can handle complex processing operations with ease. Trust this technology to provide superior efficiency and accuracy in all your CNC routing needs.
The scheme structure, which is overall welded and tempered with aging treatment, ensures firmness and prevents deformation. Both the gantry mobile and fixed workbenches are designed to process materials placed on the workbench in any manner.
The versatility of this equipment allows it to be utilized in numerous material processing applications. With its ability to efficiently handle high-volume production demands, it is an ideal solution for a wide range of production needs.

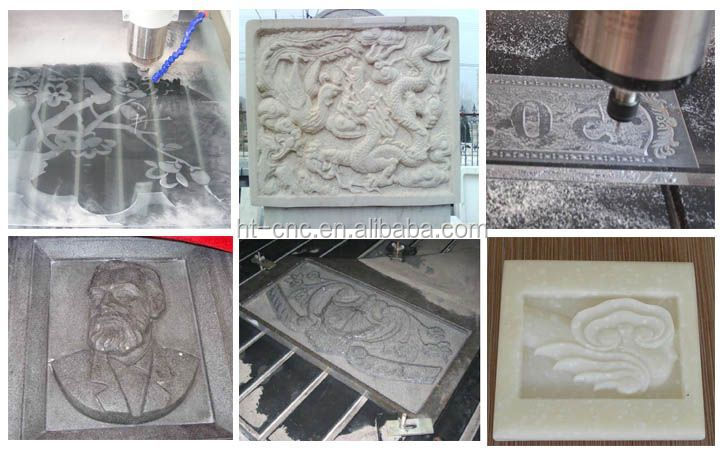

It is highly advisable to utilize marble tools equipped with a water cooling system when engaging in the processing of marble, granite, stone, and similar materials using the Two Heads Marble CNC Router 1325.
Performance parameter:
| Number | Description | Parameter |
| 1 | XYZ working area | 1300*2500*300mm |
| 2 | Table size | 1310*3000mm |
| 3 | XYZ travel positioning accuracy | ±0.025mm |
| 4 | XYZ repositioning positioning accury | ±0.025mm |
| 5 | Table surface | Aluminum T slot +PVC |
| 6 | grantry | steel |
| 7 | drive system X-Y axis | Rack |
| 8 | drive system Z axis | Ball screw |
| 9 | Spindle power | 3/5.5KW |
| 10 | Max velocity | 50m/min |
| 11 | Max working speed | 25m/min |
| 12 | Spindle speed | 0-24000rmp |
| 13 | work mode | step(optional servo) |
| 14 | Working voltage | AC220/380V |
| 15 | Command language | G code |
| 16 | Interface | USB |
| 17 | Operating system | DSP/Mach3/Ncstudio |
| 18 | Flash memory | 128 |
| 19 | X-Y resolution | 0.025mm |
| 20 | Software environment | Wentai type3 artcam |
| 21 | Running environment | Temperature:0-45°C |
| 22 | Paking size | 3300*1900*1450mm |
| 23 | Net weight | 1300 kg |
| 24 | Gross weight | 1500 kg |
